Hysecurity SlideDriver 30F 222 EX 1.7 ST
Hysecurity SlideDriver 30F 222 EX 1.7 ST
- Free shipping on most items over $200
- We have 15+ years of industry experience
- GSA, Net 30 and purchase orders available
Description
Description
***To Be Discontinued at the End of 2023 with no direct replacement***
Select Drive Rail Above if needed with Operator
***We are one of the few sellers that stock these machines, typically operators ship in 2-3 business days***
Click here for clickable parts finder
Comes in 208/230 Single Phase or 208/230/460 Three Phase
Voltage does not affect price - we will contact you for voltage and phasing once the order is placed.
SlideDriver 30F’s soft-start system (key to smoothly moving slide gates faster than 1 ft/s) combined with a high flow rate pump, cycles heavy gates quickly, at almost twice the speed of traditional slide gate operators. Brake valves, AWOG and hydraulic drive, create smooth, easy-on-gate-hardware operation. Cycle up to 3,000 lb gate at 1.7 ft/s (1,361 kg / 50 cm/s).

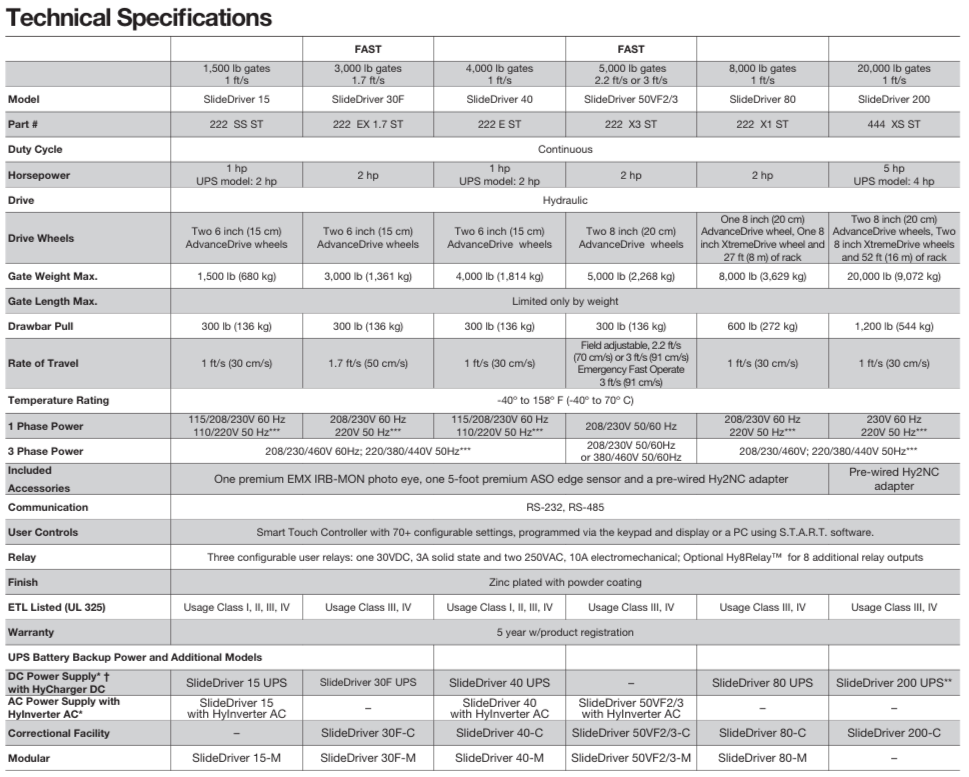

HySecurity SildeDriver 30F Gate Operator 222 EX 1.7 ST
| Duty Cycle | Continuous |
| Travel Speed | 1.7 ft/s (50 cm/s) |
| Gate Length | Limited only by weight |
| Gate Capacity | up to 3,000 lb (1,361 kg) |
| Operator HP | 2 hp |
| Drive Type | Hydraulic |
| Pull Force | 300 lb (136 kg) |
| UPS | See SlideDriver 30F UPS |
| Single Phase Voltages | 208/230V 60Hz; 220V 50Hz* |
| Three Phase Voltages | 208/230/460V or 575V* 60Hz; 220/380/440V 50Hz* |
| Temperature Rating | -40º to 158º F (-40º to 70º C) No heater necessary |
| Communication | RS-232, RS-485; Ethernet/fiber using optional HyNet™ Gateway accessory |
| User Controls | Smart Touch Controller with 70+ configurable settings. Smart Touch keypad and 32 character, OLED display or a PC using S.T.A.R.T. software. |
| Relays | Three configurable user relays: one 30VDC, 3A solid state and two 250VAC, 10A electromechanical; Optional Hy8Relay™ for 8 additional relay outputs |
| App Class | Usage Class III, IV |
| Enclosure | n/a |
| Finish Type | Zinc plated with powder coating |
| Warranty | 5 year |
If you do not see what you need online please call us 262-989-9894 for any info on the operators or package deals.
We have 15 years experience working on these products in the field. Please contact us if we can be of any assistance!
Literature and Resources
Manuals
UPS Resources
Safeties and Sensors UL325
Manuals/Installation
• SlideDriver Installation Manual (All models)
• Programming and Operations Manual (All models)
• SlideDriver Retrofit Limit Sensor
• Modbus Controlled VFD Replacement Kit
• SlideDriver Replacement Pump Pack Installation
• Flanged Drive Rail Traction Improvement
• AdvanceDrive for Collared Wheels Install
• SlideDriver Cable Release Install
• SlideDriver Key Release Install
• SlideDriver Air Release Install
• SlideDriver XtremeDrive Rack Install
• SlideDriver Snow Brush/Scraper Install
• Correctional Facility
Diagram
• 110vac-230vac Heater Diagram
