BD LOOPS EL 24-100 PREFORMED DIRECT BURIAL LOOP 4'X8' OR 6'X6' w/ 100' LEAD

BD Loops ITEM: EL 24-100
BD LOOPS EL 24-100 PREFORMED DIRECT BURIAL LOOP 4'X8' OR 6'X6' w/ 100' LEAD
BD LOOPS EL 24-100 PREFORMED DIRECT BURIAL LOOP 4'X8' OR 6'X6' w/ 100' LEAD
BD LOOPS EL 24-100 PREFORMED DIRECT BURIAL LOOP 4'X8' OR 6'X6' w/ 100' LEAD
BD LOOPS EL 24-100 PREFORMED DIRECT BURIAL LOOP 4'X8' OR 6'X6' w/ 100' LEAD

BD LOOPS EL 24-100 PREFORMED DIRECT BURIAL LOOP 4'X8' OR 6'X6' w/ 100' LEAD

BD Loops ITEM: EL 24-100
Regular price $148.50
/
  • Free shipping on most items over $200
  • We have 15+ years of industry experience
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

**All BD Loops ship same day if ordered before 1pm cst **

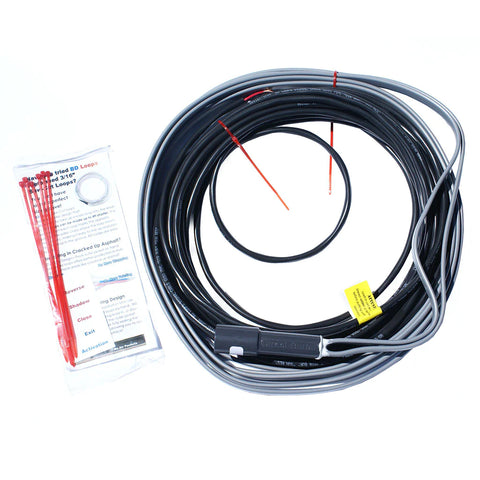

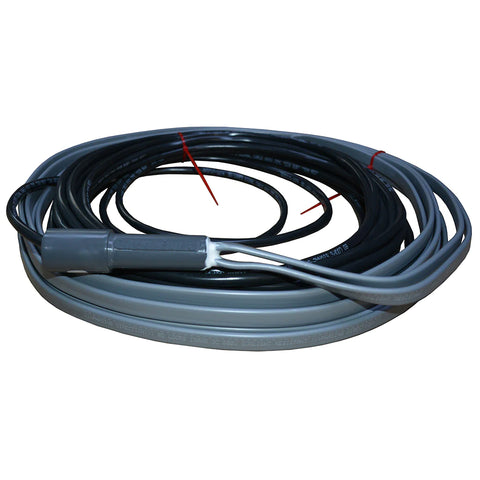

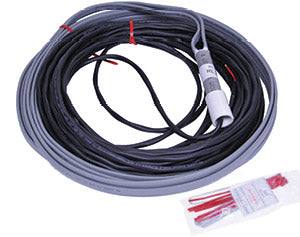

Preformed Direct Burial Loops

Used for installations under concrete, asphalt, pavers, or in gravel roads. The most common installation is the loop tied directly to the rebar before concrete is poured. Wire is designed for a direct burial application. Unlike loops wrapped through PVC, The BD Loops Direct Burial Loop does not have an air pocket, resulting in fewer repeat service calls due to phantom detections caused by ground vibration.

Our BD Loops Direct Burial loops are build with Solid 16AWG copper wire to create a tough, rigid product that won’t fall below the rebar pattern. Installing a BD Loops Direct Burial loop over rebar is a snap! Simply offset the loop from the rebar pattern and tie it down with the supplied cable ties.

    • Extra layer of protection—Thick and durable outer jacket protects both loop and lead-in.
    • Each loop is tested 3 ways before it leaves the factory.
    • Lead-in wires are tightly bound in an protective outer jacket. Eliminating the need for twisting.

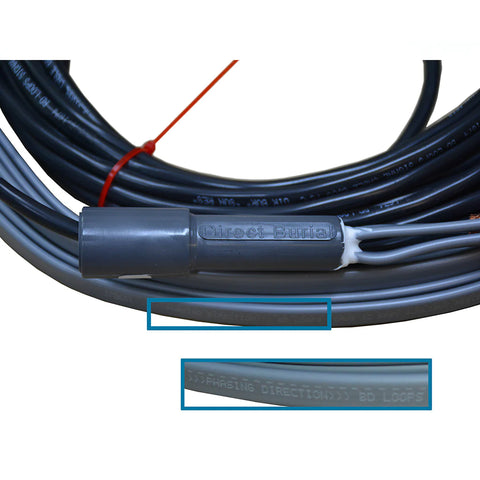

    • Flex Yoke Design with 1/2” coupler to accept PVC conduit for protecting the lead-in run.
    • The loop section is built with Solid 16AWG copper wire which makes it rigid and easy to form. In a concrete pour it won’t fall below the rebar pattern.
    • Unlike loops wrapped through PVC conduit, BD Loops Direct Burial Loops do not have an air pocket resulting in fewer repeat service calls due to phantom detections caused by ground vibration.
    • Every direct burial loop comes with zip ties for installation and loop function labels to label the lead-in wires for easy identification after installation.
