Seco-Larm PD-5PAQ 5-Output Power Distribution Board for EAP-5D5Q

Seco-Larm ITEM: PD-5PAQ
Seco-Larm PD-5PAQ 5-Output Power Distribution Board for EAP-5D5Q

Seco-Larm PD-5PAQ 5-Output Power Distribution Board for EAP-5D5Q

Seco-Larm ITEM: PD-5PAQ
Regular price $51.00
/
  • Free shipping on most items over $200
  • We have 15+ years of industry experience
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

Seco-Larm PD-5PAQ 5-Output Power Distribution Board for EAP-5D5Q

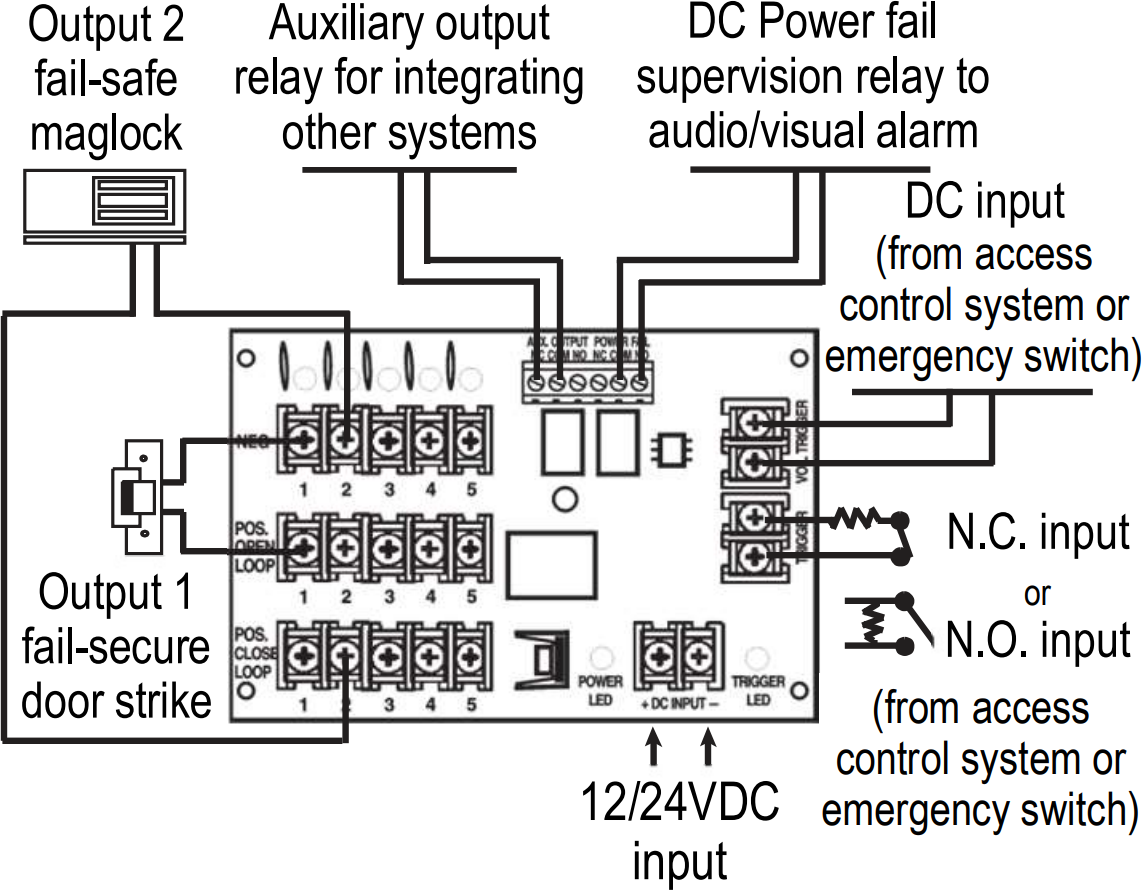

The PD-5PAQ 5-Output Power Distribution Board centralizes the power sources for access control electronic locking devices, such as maglocks, shear locks, electric door strikes, deadbolt locks, and so on. It provides a separate fuse for each output so that problems with one device may be isolated from the other devices.

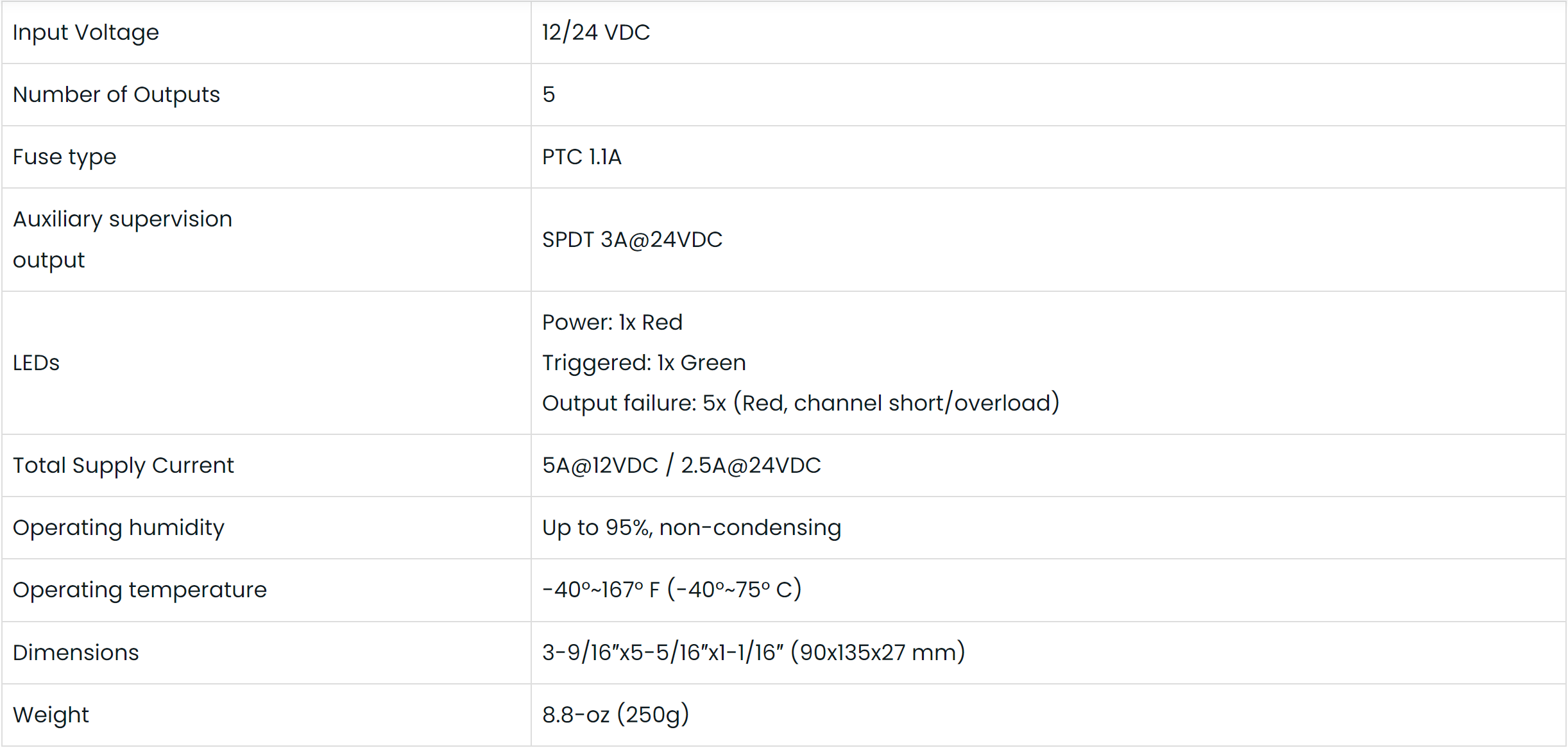

  • Five individually PTC-fused (1.1A) outputs
  • Each output will operate in both fail-safe and fail-secure modes
  • Output current limit: 1.1A@12/24 VDC each
  • For 12VDC or 24VDC operation
  • Equipped with dry and wet trigger inputs
  • Power failure supervision relay (3A@24VDC)
  • Auxiliary supervision relay (3A@24VDC)
  • Individual LED status indicator for each output, power input, and trigger
