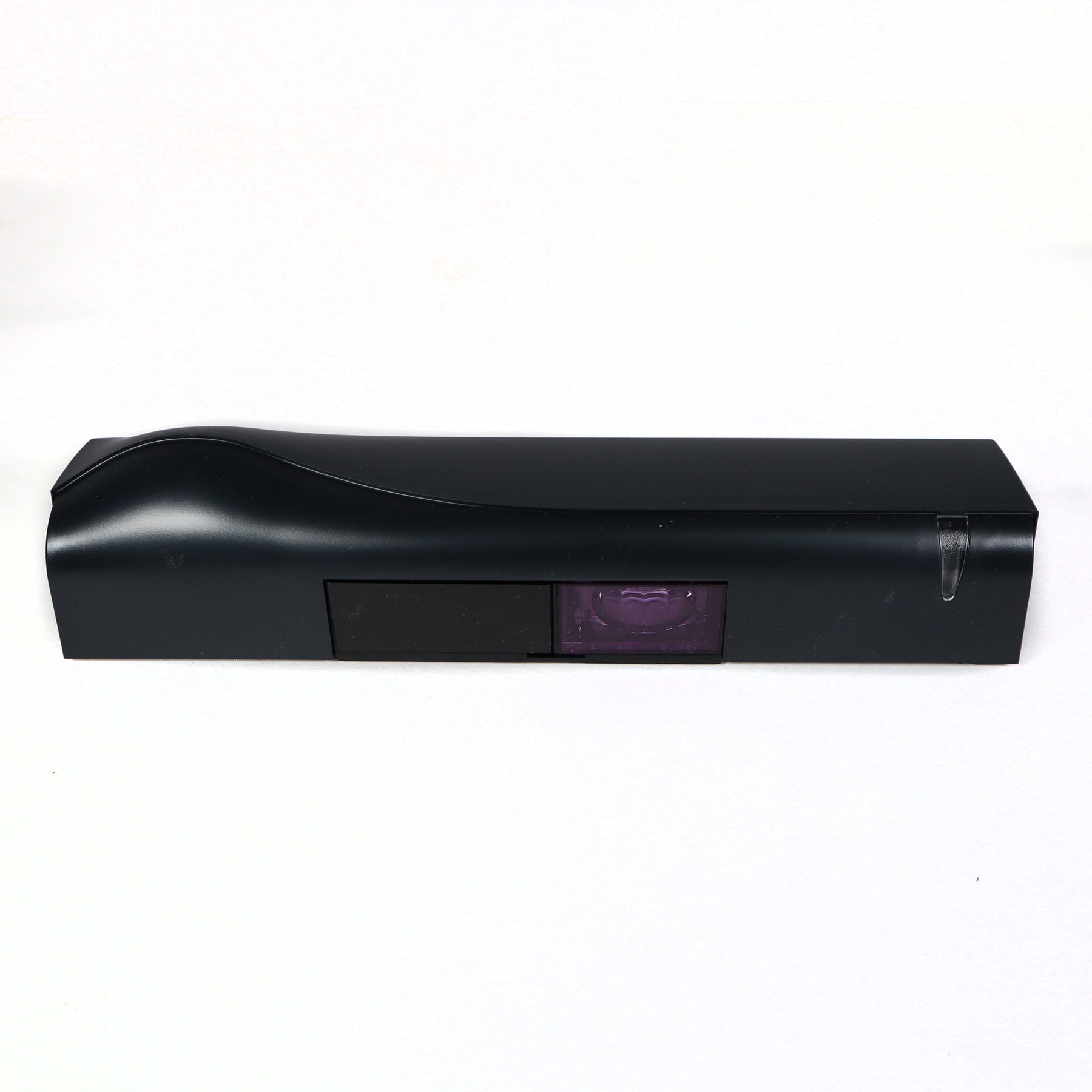

Standards compliant - Fully monitored internally, capable of
external monitoring

Precise presence detection - Two 24-spot, high-density,
infrared safety curtains providing precise presence detection

Ease of setup - Intelligent programming and troubleshooting
via a menu-driven LCD

Intelligent solution - On board microprocessor optimizes
data analysis, monitors sensor performance and enables system integration

Quick Guide

User Guide / Manual

Remote Control User Guide

Cut Sheet

Architectural Spec Sheet

Zip Code Troubleshooting Guide

Sliding Door Solutions Comparison Sheet

Accessory Note IXIO Spacer

Accessory Note IXIO-Optex Conversion Harness

Monitoring by Voltage

Sliding Door Wiring

Zip Code

Why will the IXIO’s active infrared safety pattern not hold the door open?

The brown and blue wires must be connected, or F1 must be set to “1” using the remote control.

Why is the PNP harness not working on a BESAM control?

The harness is reversed; the short harness plugs into the IXIO.

Why is the RECORD sliding door holding open?

The RECORD control uses a normally closed safety circuit; set the safety output to N.C.

Why is the IXIO bliking red on a DORMA door?

The IXIO is defaulted to monitoring ON; connect the two (2) purple monitoring wires to the control.

How do I eliminate four (4) orange LED flashes or “low AIR”?

Verify the pattern width shutters are not closed (the software should still be set to wide).Verify the active infrared safety pattern is not tilted out too far away from the door.

Turn off the 2nd active infrared safety pattern row.

Why does the door recycle open?

If the red LED illuminates, the active infrared safety curtain needs adjusted.

If the green LED illuminates, the microwave activation angle/sensitivity/immunity needs adjusted.

What are the extra wires not connected to the door control?

The two (2) purple wires are for monitoring and the yellow wire is for N.C. activation relay.

How do I locate the IXIO’s active infrared safety pattern relative to the door face?

Double-click the gray knob to turn on the visible red aligment spots or press UNLOCK > MAGIC WAND > + on the remote control, and then use the red knob to adjust active infrared saftey pattern to within 3” of the face of the sliding door panel. After adjustment, relaunch a setup.

How do I use an IXIO for 1-way traffic reactivation?

If the door is equipped with a two-way traffic option, connect the white and green wires to the activation circuit.

If the door is NOT equipped with a two-way traffic option, DO NOT connect the white and green wires to the activation circuit; instead, connect the brown and blue wires to the safety circuit.

Using the LCD, set RAD: REENTRY to value “”3″” or “”4″”. Walk-test to ensure there is a minimum of a 24” reactivation zone.

Why does the IXIO LED blink fast red when I try to unlock it with the remote control?

A lock code has been entered. To remove it, power cycle the IXIO and then press UNLOCK > LOCK > 0000.
