PBS-3R Open / Close / Stop (NO Stop Circuit)
PBS-3R Open / Close / Stop (NO Stop Circuit)
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description

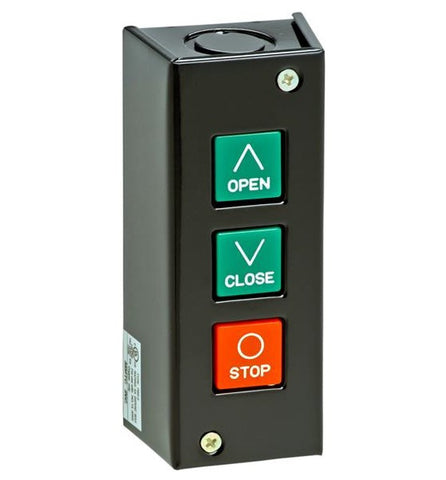

The PBS-3R is a 3-button Open / Close / Stop control station in a NEMA 1 metal enclosure for indoor surface mounting. All three buttons are momentary, normally open contacts, including Stop. The station measures 5-5/16 in H x 2-3/8 in W x 1-13/16 in D. This model is also listed as the 3BU.
Use it inside a building, next to a commercial door or at an interior gate or barrier position. It wires to the operator's open, close and stop terminals plus common. The stop button closes the circuit when pressed, so the operator must expect a normally open stop input.
Features
- Open, Close and Stop push buttons
- Momentary contacts
- Normally open Open, Close and Stop
- NEMA 1 metal enclosure for indoor use
- Fully guarded buttons
- Surface mount
- UL listed components
Before You Order
- Check your operator's stop input. This station has a normally open stop. For an operator that needs a normally closed stop circuit, order the PBS-3.
- NEMA 1 is for indoor locations only. For outdoor or washdown areas, use a NEMA 4 or 4X station such as the 3BX or 3B4X.
- No lockout on this model. For key lockout, see the 3BXL or 3BFL.
- Run 4 conductors: open, close, stop and common.
- Need fewer buttons? The PBS-2 is Open / Close and the PBS-1 is a single button.
- Model: PBS-3R (also listed as 3BU)
- Buttons: 3
- Button Functions: Open / Close / Stop
- Contact Type: Momentary; Open, Close and Stop N.O.
- Stop Circuit: Normally open
- Enclosure Material: Metal
- Enclosure Rating: NEMA 1 (indoor)
- Mounting: Surface mount
- Dimensions: 5-5/16 in H x 2-3/8 in W x 1-13/16 in D
- Lockout: None
- Wiring/Terminals: 4-wire: open, close, stop, common
- Commercial door operators with 3-button (open/close/stop) inputs
- Gate and barrier operators with dry-contact open, close and stop inputs
Indoor 3-button control for commercial doors, gates and barrier arms that use a normally open stop input.
- Interior commercial door controls
- Rolling steel and sectional doors
- Warehouse and loading dock doors
- Indoor parking garage gates
- Barrier arm control booths
