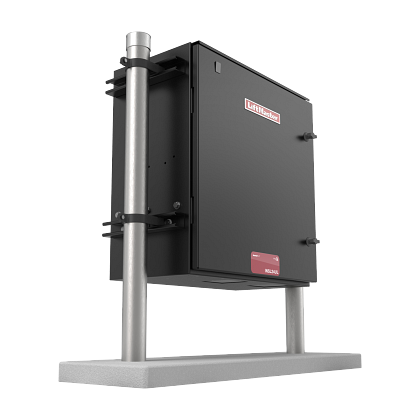

Liftmaster INSL24UL 24VDC Continuous Duty Industrial Slide Gate Operator
Liftmaster INSL24UL 24VDC Continuous Duty Industrial Slide Gate Operator
- Free shipping on most items over $200
- We have 15+ years of industry experience
- GSA, Net 30 and purchase orders available
Description
Rated for gate 2,200lbs and 70'
The LiftMaster® Heavy-Duty Industrial Slide Gate Operator builds on the brand’s legacy of reliability. The operator allows Facility Managers to focus on everyday responsibilities without worrying about failure or frequent maintenance. Easy to install, retrofit, program, and troubleshoot, it delivers worry-free continuous-duty operationeven in extreme weather conditions. The operator consistently lives up to the tireless demands of manufacturing, transportation, municipality, utility and warehouse environments. It also works as a complete system when paired with safety devices and offers full control over access points via myQ® technology.
Includes Reflective Style Photoeye and Safety Edge **Requires Wireless Edge Kit**
Optional MRIN Riser Stand Kit for concrete pad mounting.
- Brushless DC Technology: Continuous-duty motor is more efficient and requires less maintenance, providing reliable DC performance 24/7.
- Battery Backup: Provides seamless operation by providing standby power when the power is down.
- Industrial Grade Gear-Driven Transmission: Rugged and efficient performance for reliable operation, including Class III & IV applications
- Robust, Lockable Enclosure: 14 ga. steel, weatherproof (NEMA 3R rated) cabinet prevents unauthorized access into the operator and protects it from the environment.
- Manual Disconnect: Lockable position allows gate to be opened manually when released.
- Pad and Retrofit Mounting Options: Optional riser (MRIN) makes it easy to replace an existing operator, providing multiple mounting positions and better protection from the climate.
- Smooth Start/Stop Operation: Extends the life of the operator and gate hardware.
- UL® Listed: Gate operator and monitored safety protection devices are tested together to provide a robust, secure system
Specifications
- Capacities: Rated for gates up to 90 ft. in length and weighing up to 5500 lbs.
- IHSL24UL Usage Classification: Class II, III, and IV
- Main AC Supply: 120 Vac, 13.0 Amps including Accessory Outlets OR 240 Vac, 3.7 Amps
- Optional Transformer Kit: When Optional Transformer Kit Model 3PHCONV is installed in the field, operator is rated 208/240/480/575 VAC, 5.2/4.5/2.3/1.9 A, 60 Hz, 1 PH
- System Operating Voltage: 24 Vdc Transformer Run / Battery Backup
- Accessory Power: 24 Vdc, 1A max. for ON + SW (switched)
- Solar Power Max: 24 Vdc at 60 watts max.
- Maximum Gate Weight: 2,200 lbs.
- Minimum Gate Travel Distance: 4 feet
- Maximum Gate Travel Distance: 70 feet
- Maximum Gate Travel Speed: 0.5 to 1 ft./sec.
- Maximum Daily Cycle Rate: Continuous for line voltage, not continuous for solar
- Maximum Duty Cycle: Continuous
- Operating Temperature: Without Heater: -20°C to 60°C (-4°F to 140°F) With Optional Heater: -40°C to 60°C (-40°F to 140°F)
- 120VAC Accessory Power Outlets: 6 amps When the 3PHCONV kit is used, the outlets are rated 1 Amp
- External Entrapment Protection Device Inputs: Control Board - up to 2 close entrapment protection devices and 1 open entrapment protection device. Expansion board - up to 3 entrapment protection devices configurable to either the close or open direction and up to 8 edge sensors when using the wireless edge sensor kit model LMWEKITU and LMWETXU.
