HBFST Interior Flush Mount Tamperproof Open-Close with Stop w/ Mortise Cylinder
HBFST Interior Flush Mount Tamperproof Open-Close with Stop w/ Mortise Cylinder
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description

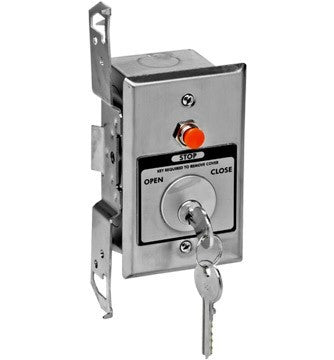

The HBFST is a tamperproof open/close keyswitch with a push-button Stop on a stainless steel single-gang faceplate for interior flush mounting. It is rated NEMA 1 for indoor use. Turn the key left or right to send an open or close command; it springs back to center when released. It uses a 5-pin mortise cylinder. The faceplate measures 4-1/2 in x 2-3/4 in. The back box is 4 in H x 2 in W x 2-3/4 in D.
Fit it to a standard single-gang box in an interior wall next to a commercial door, gate or barrier. Wire the open and close contacts and the stop button to the operator inputs plus common.
Features
- Open / Close key positions
- Spring return to center
- Momentary contacts
- Push-button Stop
- 5-pin mortise cylinder
- Stainless steel faceplate
- Tamperproof
- NEMA 1 for indoor use
- Single-gang flush mount
Before You Order
- Single-gang flush mount. Check the box depth before installing.
- NEMA 1 is indoor only. For an exterior wall, see the HBFSX.
- Check if your operator needs a normally closed or normally open stop circuit.
- Run 4 conductors: open, close, stop and common.
- No stop button needed? See the HBFT. Standard version: HBFS.
- Model: HBFST
- Switch Type: Keyswitch, tamperproof
- Key Positions: Open / Close, spring return to center
- Contact Type: Momentary
- Stop Button: Yes, push button
- Cylinder: 5-pin mortise
- Faceplate Material: Stainless steel
- Enclosure Rating: NEMA 1 (indoor)
- Mounting: Flush mount, single-gang box
- Dimensions: Faceplate 4-1/2 in x 2-3/4 in; back box 4 in H x 2 in W x 2-3/4 in D
- Gate, door and barrier operators with dry-contact open, close and stop inputs
- Commercial door operators with keyed open/close/stop control
Keyed flush-mount open/close control with a stop button for interior walls next to commercial doors and gates.
- Interior commercial door controls
- Rolling steel and sectional doors
- Warehouse and loading dock doors
- Indoor parking garage gates
- Secure storage rooms
