Looking for an all in one drive-thru sensor solution? It is finally here the EMX DAK-2ULTMVP
The DAK-2ULTMVP drive-thru alert kit provides audio and visual indication to team members that need to know when a customer’s vehicle has pulled into the drive-thru lane. This system can be used in a wide variety of drive-thru applications requiring 2 detection zones, including fast-food restaurants, banking, and car wash.

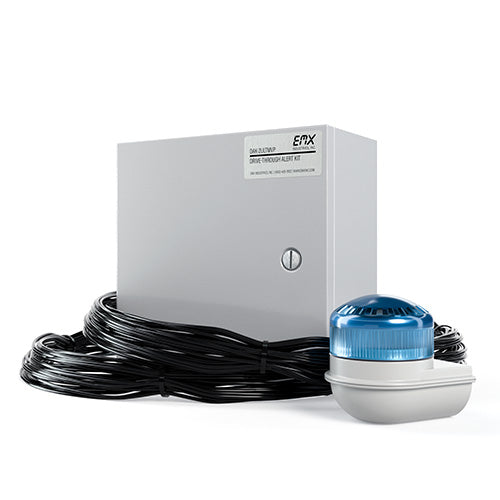

The panel inside the junction box will have the transformer and ULT-MVP vehicle detectors mounted and prewired. Terminal blocks inside the panel will be available for easy connection of incoming power (120 VAC) and wire connections to the PR-46 loops and LED beacon. All of the vehicle detectors and the LED beacon will be preprogrammed.
FEATURES OF OUR DRIVE-THRU ALERT KIT
The DAK-2ULTMVP is a complete system for detecting vehicles and notifying staff for applications requiring dual-zone detection.
- The ULT-MVP is a multi-voltage vehicle detector that will automatically adjust from 12 VDC up to 240 VAC to fit any installation. The ULTRAMETER™ display indicates the appropriate sensitivity setting to detect a vehicle near the loop. Ten sensitivity settings allow for fine adjustment of the detection level, while four frequency settings provide flexibility in preventing crosstalk in multi-loop applications. The ULT-MVP provides two relay outputs – one for indicating vehicle presence and a second for loop fault, pulse on entry/exit, or DETECT-ON-STOP™. DOS® allows detection only when a vehicle has come to a complete stop on the loop. This EMX exclusive feature ignores cross traffic in tight spaces.
- The PR-46-100 is a ready-to-use, preformed loop with a 100-foot lead that can be shortened or spliced to extend as needed. The loop is housed in rugged and flexible 0.26” diameter thermoplastic rubber tubing and provides built-in lightning protection. It is suitable for all installations – saw cut, concrete, and tar.
- The SLM500B is a LED beacon and sounder with three separate levels of alarm. Channel 1 includes a simulated strobe (triple flash). Channel 2 adds an audible tone (32 options included) to the simulated strobe effect. Channel 3 includes a steady light and a second, unique tone (32 options included) for a total of 64 unique tones. The volume of the tone is adjustable from 65-105 dBa.
EMX DAK-2ULTMVP DRIVE-THRU ALERT KIT
$2,099.00
The DAK-2ULTMVP drive-thru alert kit provides audio and visual indication to team members that need to know when a customer’s vehicle has pulled into the drive-thru lane. This system can be used in a wide variety of drive-thru applications requiring… Read More
ULTRA MVP SPECS
| Sensitivity | 10 levels, 0-9 |
| ULTRAMETER™ Display | Indicates optimum sensitivity level, 0-9 Diagnostic aid |
| Loop frequency | 4 settings (low, med-low, med-hi, high) |
| Loop inductance | 20…2000µH (Q factor > 5) |
| Grounded loop | Isolation transformer allows operation with poor quality loops |
| Automatic tuning | Detector tunes to loop on power-up and following frequency count function |
| Environmental tracking | Automatic compensation |
| Surge protection | Loop circuitry protected by surge suppressors |
| Presence relay | SPDT relay contacts (form C) |
| Output B relay | SPDT relay contacts (form C) |
| Contact rating (resistive load) | 2A @ 30VDC, 0.5A @ 125VAC |
| Power / loop fault indicator | Green LED |
| Detect / frequency count indicator | Red LED |
| Detect-On-Stop | Requires vehicle to stop for a minimum of 1 second (1-2s typical) |
| ASB (Automatic Sensitivity Boost) | Increases sensitivity after initial detection to prevent dropout due to high-bed vehicles |
| Power | 12…60 VDC (Max. 0.8 VA) 12…240 VAC (48…62Hz) (Max. 1.4 VA) |
| Operating current | 20mA standby / 50mA detect |
| Operating temperature | -40°C…82°C (-40°F…180°F) 0…95% relative humidity |
| Dimensions (L x W x H) | 73mm (2.9”) x 38mm (1.2”) x 78mm (3.1”) |
| Weight | 0.25 lbs. (113 g) |
| Housing | ABS plastic, IP30 |
| Connections | Socket mount – 11 pin male (JEDEC B11-88) |
PR-46-100 SPECS
| Operating Temperature | -8°F to 194°F, -22°C to 90°C |
| Overall Diameter of Loop Wire | 0.26″ |
| Loop Dimensions | 4×6′ |
| Lead-In Wire | 100′ twisted wire in PVC jacket |
| Loop Wire Approvals | UL TC, PLTC, FPL or NPLF 300/600 Volt 40 mil nylon PVC direct burial |
SLMB500B SPECS
| Voltage | 12-24 VAC/DC |
| Flash Rate / Minute (Flash Mode) | 85 (+/- 10) |
| 3 Channels Included | 1: Simulated strobe 2: Simulated strobe + tone 1 3: Steady light + tone 2 |
| Decibels @ 1 M | Min. 65, Max. 105 |
| Max Operating Current | 460 mA @ 24 VAC/DC |
| Material | Polycarbonate, Type 3R, IP65 enclosure |
| Weight | Beacon: 7.05 oz (0.20 kg) Bracket: 6.70 oz (0.19 kg) |
| Light Source | 50,000 hour LED |
| Operating Temperature | -22°F to 122°F, -30°C to 50°C |
| Certifications | CE, cUL listed |
